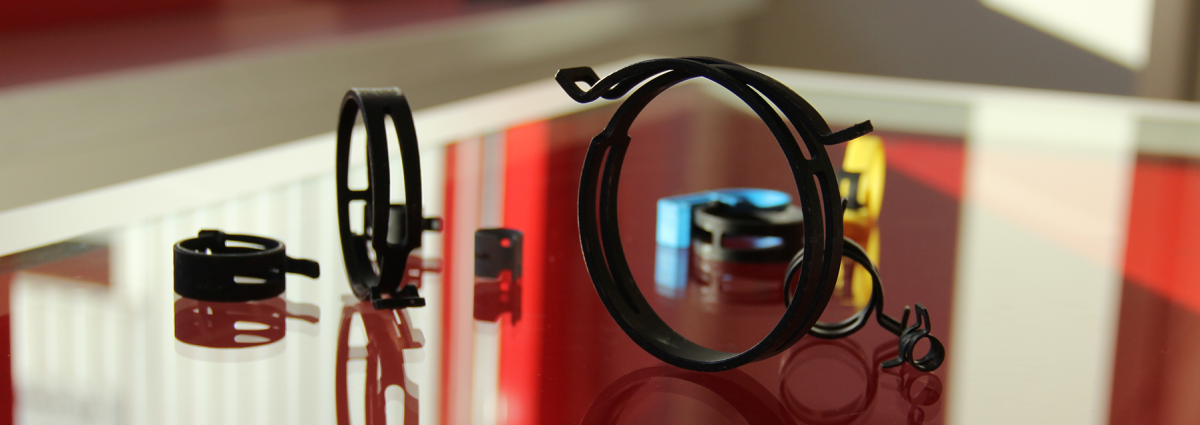

Spring band clamps for hose-socket connections
Spring band clamps are used in particular in the following sectors:
- fluid systems
- engine construction
- hose systems
- commercial kitchens/Industrial dishwashers
- industrial air conditioners
- agricultural machinery
- floor cleaning machines
- heat pumps
- heating/air conditioning
- sanitary (e.g., toilets for ships, trains, aircrafts)
- food industry (e.g., bakery/coffee machines)
- solar thermics
- printing industry
- white goods
- construction machinery
- LPG installations
- industrial trucks
- beverage industry (e.g. bottling plants)
Advantages of spring band clamps for connecting hoses with nozzles:
- high flexibility through continuous adaptation to changing characteristics, e.g. temperature fluctuations of the fasteners
- constant, uniform clamping force
- easy installation
- no subsequent tightening necessary
- high reusability, since spring force is not lost
- high process reliability due to the leak-free hose-connection

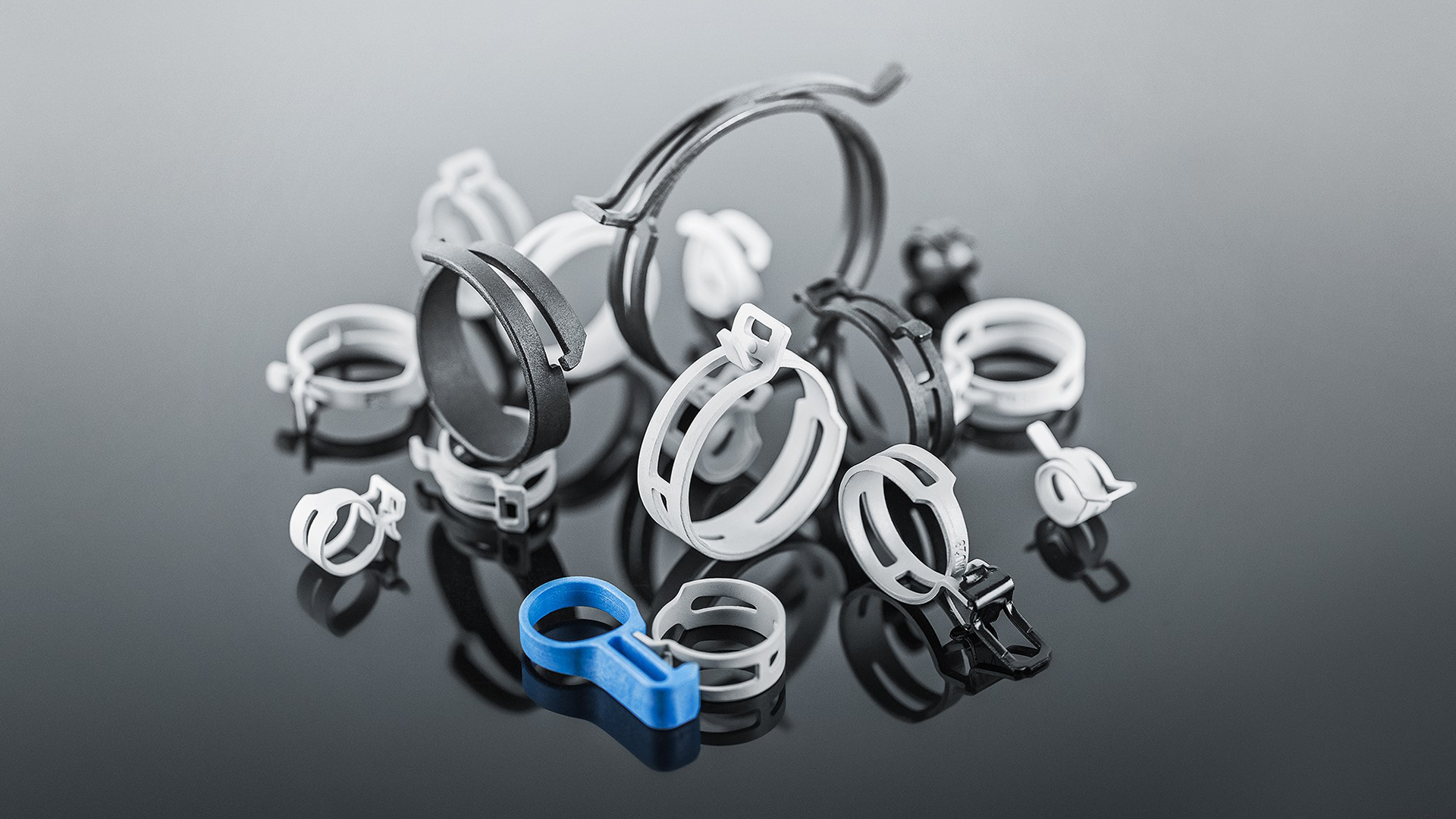

Types of spring band clamps
- high-strength, alloyed spring steel 51CrV4
- high level of protection against brittle fracture, especially at low temperatures
- multi-layered & environmentally friendly chrome (VI) -free coating
- zinc-containing, inorganic basecoat and organic topcoat
- complies with the regulations of the automobile regulation (RoHS compliant)
- excellent resistance to corrosion, temperature (up to 210 °C) and chemicals
- guaranteed 720h salt spray resistance according to DIN EN ISO 9227
Available nominal diameter & bandwiths
- nominal diameter 9.0 mm to 90 mm
- bandwiths 8.4 mm, 10 mm & 12 mm
- depending on the hose-socket combination, connections of up to a maximum of 11 bar can be fastened
- DIN 3021 Hose clamps - spring band clamps
- DIN 3021-1 Dimensions, designation, materials and design
- DIN 3021-2 Technical delivery conditions
- DIN 3021-3 System spring band clamp - hose - socket
|Wide diameter range||Rigid system|
|Cost-effective production with large diameters||High maintenance|
|High hose pulling forces||Expensive (with small diameters)|
|Time-consuming and expensive installation tool: torque and closing speed must be controlled|
|Risk of injury due to protruding band|
|Ear hose clamp|
|Corrosion-resistant base material||Possible hose damage|
|Small clamp width||Not reusable (destructive dismantling)|
|Low space requirements||Special pliers necessary for installation|
|High hose pulling forces||High force required for installation|
|Cost-effective, very rigid fastener||Very small working range (strongly linked to diameter)|
|The force of the clamp depends on the pressing force of the assembly tool (complex controls required)|
|Spring band clamps|
|Highly flexible||Linked to diameter|
|Simple installation even on hard-to-reach connections||Comparatively high demands on the hose/support system|
|Very even surface pressure (distribution of radial force)||Hose/support/system must be taken into account|
|Adhesion to the hose possible in pre-opened condition|
|Protects the hose|
